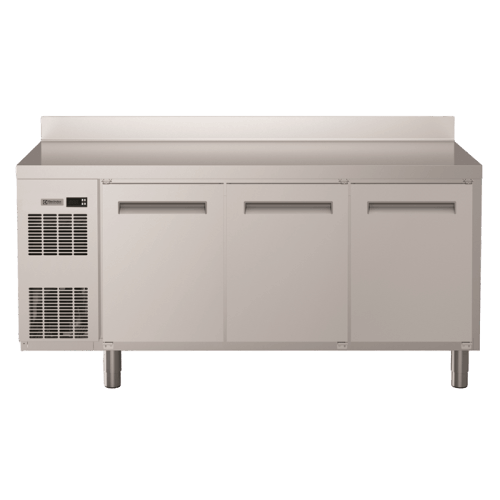

Mesa Refrigerada Digital, 3 Puertas, GN 1/1, con lambrín

710434 (EJ3R3AAA)

3-door Refrigerated Counter, -2+10°C (R134A), with upstand

Volver a Preservación


  • Internal and external doors, front and side panels in 304 AISI stainless steel. N.3 doors. With top and upstand. Built-in refrigeration unit. Ventilated. Refrigerant R134a. High-density expanded polyurethane foam, 90 mm in thickness, with cyclopenthane injection. Digital control panel. Completely automatic defrosting and automatic evaporation of defrost water obtained by hot gas. Temperature range: -2+10°C. CFC and HCFC free. Feet in 304 AISI stainless steel, adjustable in height.

  • Tropicalized unit (43°C ambient temperature).
  • Kit 1/3 drawers available as accessory.
  • Digital control panel allowing the easy and precise setting and control of the internal temperature.
  • Operating temperature can be adjusted from -2 to +10 °C to suit different food storage requirements.
  • This appliance is intended for use in ambient temperatures up to 40°C.
  • Complies with main international certification bodies and is CE marked.
  • Kit 1/2 drawers available as accessory.
  • The door self-closes when opened less than at a 90° angle and is equipped with a door seal to guarantee perfect closure.
  • Completely automatic defrosting and automatic evaporation of defrost water by hot gas.
  • Forced air cooling system guaranteeing great uniformity of the temperature in the counter and excellent conservation of the food quality.
  • High standards of hygiene and ease of cleaning are guaranteed by the rounded internal corners of the cabinet and easily removable runners and grids.

  • Built-in compressor to suit operating conditions.
  • CFC and HCFC free.
  • Legs in 304 AISI stainless steel (150 mm high, adjustable in height), with plastic interior.
  • Internal and external doors, front and side panels and 50mm thick removable worktop in 304 AISI stainless steel.
  • Back panel in galvanized steel.

  • 3 of Kit 1/1 grey rilsan grid and 2 side runners for refrigerated counters
Electric
Supply voltage: 710434 (EJ3R3AAA) 220-240 V/1 ph/50 Hz
Electrical power max.: 0.22 kW
Key Information:
Gross capacity:
Net Volume: 245.4 lt
N° of doors: 3
External dimensions, Width: 1699 mm
External dimensions, Height: 950 mm
External dimensions, Depth: 700 mm
Internal Dimensions (depth): 560 mm
Internal Dimensions (height): 510 mm
Internal Dimensions (width): 1252 mm
Net weight: 114 kg
Shipping volume: 1.49 m³
Depth with doors open: 1310 mm
Refrigeration Data
Control type: Digital
Compressor power: 1/4 hp
Refrigerant type: R134a
GWP Index: 1300
Refrigeration power: 358 W
Refrigerant weight: 120 g
Min/Max internal humidity: 40/85
Operating temperature min.: -2 °C
Operating temperature max.: 10 °C
Operating mode: Ventilated
Product Information (EU Regulation 2015/1094)
Energy Class: B
Yearly and daily energy consumption: 605kWh/year - 1.66kWkWh/24h
Climate class: Heavy Duty (5)
Energy Efficiency Index (EEI): 25.03
