Mesa congelada 170 L 1 puerta -12 a -22 ¯C con lambrín

738303 (KCHUCWT27F)

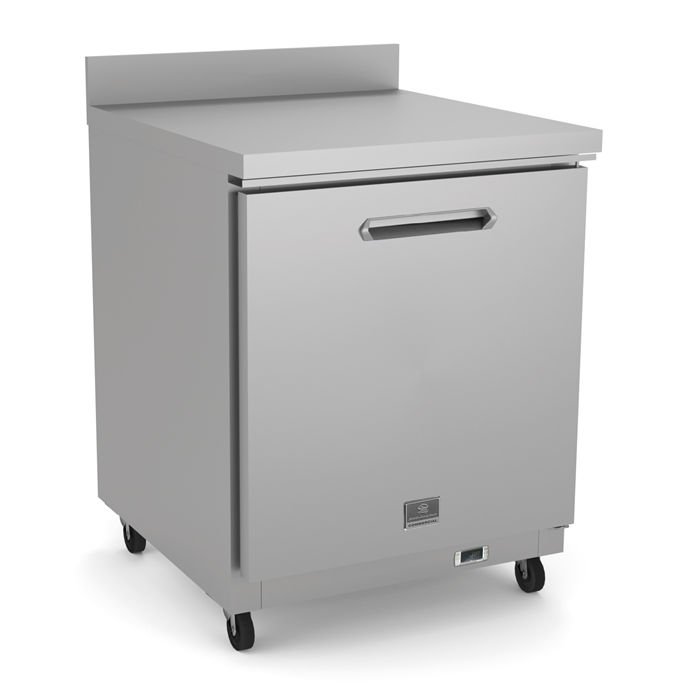

1-door undercounter freezer with worktop, 27", R290 refrigerant gas, -9°F , stainless steel

Volver a Preservación


  • 1-door freezer counter top with exterior back panel in aluminium, exterior bottom panel in galvanized steel, exterior side and top panel in 430 stainless steel; interior back, top and bottom panels in 304 stainless steel.
  • Fin & tube condenser to improve the performances in high temperature environments. Automatic Defrost Cooling System and temperature control. Vinyl heavy duty adjustable, easy to handle and clean shelves. External temperature display.
  • R290 gas in the refrigeration circuit. ETL Safety and Sanitation certifications. 3/5 Years warranty

  • External temperature display.
  • Removable door gasket for easy cleaning operations.
  • Hydrocarbonrefrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
  • Fin & Tube Condenser improves performance in high temperature environments.
  • Automatic Defrost Cooling System provides worry-free performance.
  • Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
  • Heavy duty Vinyl coated steel shelves.
  • CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
  • High efficiency components to minimize the energy consumption still guaranteeing the highest performances.
  • Cabinet and door insulated with high density polyurethane for low environmetal impact.

  • Reversible door.
  • Self-closing door with 90-degree stay-open feature.
  • Heavy duty casters.
  • Pre-wired heavy duty power cord.
  • Heavy duty door hinges.
  • Magnetic door gasket removable without tools for easy cleaning.
Electric
Supply voltage: 738303 (KCHUCWT27F) 115 V/1 ph/60 Hz
Electrical power max.: 0.2 kW
Current consumption: 1.9 Amps
Plug type: USA NEMA 5-15P
Key Information:
Capacity (Cu.Ft.) 6.5 cu.feet
Door hinges: Right Side
External dimensions, Width: 27 13/16" (705 mm)
External dimensions, Height: 39 7/16" (1002 mm)
External dimensions, Depth: 29 15/16" (760 mm)
Number and type of doors: 1 Full
Internal Dimensions (depth): 22 13/16"
Internal Dimensions (height): 23 1/2"
Internal Dimensions (width): 22 1/4"
Shipping height: 42 1/8" (1070 mm)
Shipping weight: 198 lbs (90 kg)
Shipping volume: 22.52 ft3 (0.64 m3)
Number and type of grids (included): 2 - Vinyl-Coated Steel
Type of external material: Stainless Steel
Type of internal material: Polystyrene
Warranty: 3 / 5 years
Refrigeration Data
Compressor power: 1/4
Refrigerant type: R290
Refrigerant weight: 110 g
Operating temperature min.: -9.4 °F
Operating temperature max.: 8.6 °F
Condenser type: Fin & tube
Defrost type: Auto Defrost
