Congelador 2030 L 3 puerta -20 a -22 ¯C

738246 (KCHRI81R3DF)

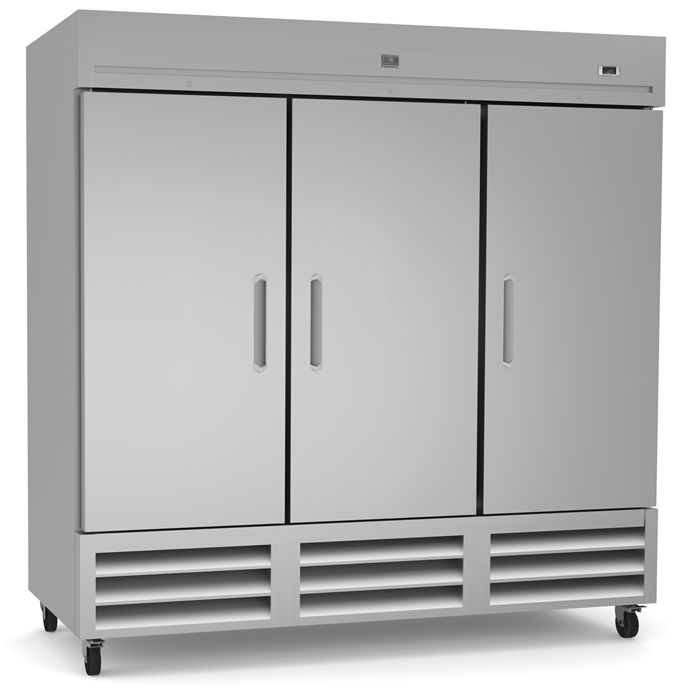

3-door reach-in freezer, stainless steel, 72 cubic feet, R404a refrigerant gas, -9°F

Volver a Preservación


  • 3 full doors freezer with exterior back and bottom panels in galvanized steel, exterior side and top panels in 430 stainless steel; interior back, side, top and bottom panels in 304 stainelss steel. Control with cabinet temperature display. Self-closing and on-site reversible door feature lock and key.
  • R290 gas in the refrigeration circuit. ETL Safety and Sanitation certifications. 3/5 Years warranty

  • External temperature display.
  • Removable door gasket for easy cleaning operations.
  • Fin & Tube Condenser improves performance in high temperature environments.
  • Automatic Defrost Cooling System provides worry-free performance.
  • Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
  • Heavy duty Vinyl coated steel shelves.
  • High efficiency components to minimize the energy consumption still guaranteeing the highest performances.
  • Cabinet and door insulated with high density polyurethane for low environmetal impact.
  • Bottom mounted cooling unit slides out for easy access and cleaning.
  • Interior LED light to save energy and for best internal visibility

  • Lockable door.
  • Self-closing door with 90-degree stay-open feature.
  • Heavy duty casters.
  • Pre-wired heavy duty power cord.
  • Heavy duty door hinges.
  • Magnetic door gasket removable without tools for easy cleaning.
Electric
Supply voltage: 738246 (KCHRI81R3DF) 230 V/1 ph/60 Hz
Electrical power max.: 1 kW
Current consumption: 8 Amps
Plug type: USA NEMA L14-20P
Key Information:
Capacity (Cu.Ft.) 79
Door hinges: 1 Left+ 2 Right
External dimensions, Width: 81 " (2057 mm)
External dimensions, Height: 82 1/4" (2090 mm)
External dimensions, Depth: 32 11/16" (830 mm)
Number and type of doors: 3 Full
Internal Dimensions (depth): 27 1/16"
Internal Dimensions (height): 60 1/4"
Internal Dimensions (width): 76 5/16"
Shipping height: 84 5/8" (2150 mm)
Shipping weight: 776 lbs (352 kg)
Shipping volume: 139.55 ft3 (3.95 m3)
Number and type of grids (included): 9 - Vinyl-Coated Steel
Type of external material: 430 AISI
Type of internal material: 304 AISI
Warranty: 3 / 5 years
Refrigeration Data
Compressor power: 1 1/4
Refrigerant type: R404A
Refrigerant weight: 150 g
Operating temperature min.: -7.6 °F
Operating temperature max.: -4 °F
Condenser type: Fin & tube
Defrost type: Auto Defrost
