Horno de Convección Eléctrico, Capacidad 10 GN 1/1 Cross

260727 (FCE10160)

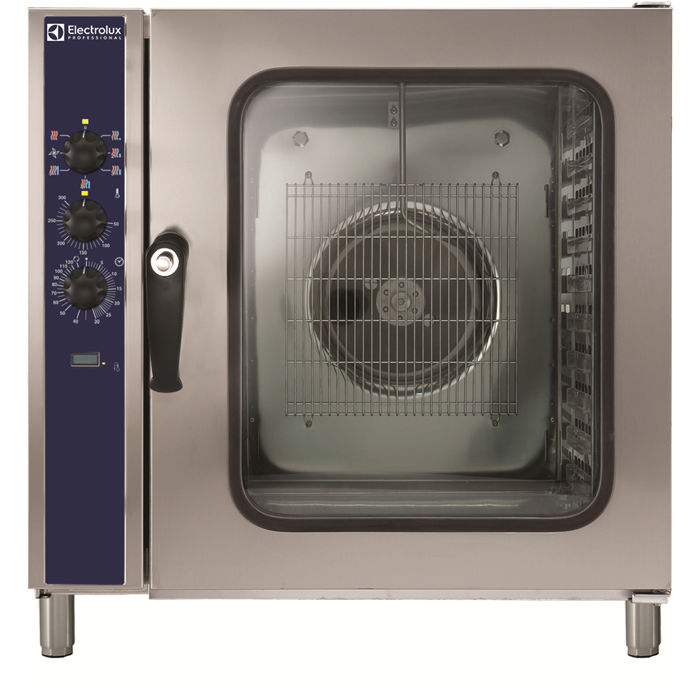

Electric Convection Oven 10x1/1GN, crosswise

Volver a Hornos de convección


  • Main structure in stainless steel, with seamless joints in the oven cavity. Double-glazed door with tempered glass. Cavity lighting. Unique airflow channel system. Cooking cycles: air convection, convection with 5 stage humidification. Max. temperature of 300°C. Functional level: base, manual. "Cross-wise" pan rack suitable for 10x1/1GN. The pan rack, fixed, can be converted into a roll-in rack by using an optional kit. Supplied with n. 1 pan rack, 60mm pitch (made up of n. 2 side hangers).

  • Racks can be easily removed without the need for special tools.
  • Unique air-flow system guarantees perfect distribution of heat throughout the oven cavity.
  • Maximum temperature of 300°C.
  • Food temperature probe available as accessory.
  • Rapid cooling of oven cavity.
  • Halogen lighting and “crosswise” pan supports allow clear and unobstructed view of the products being cooked.
  • 5 Stage humidification control, to ensure perfect pastries and succulent roasts.
  • Meets the requirements of CE, VDE and DVGW for safety.

  • Access to all components from the front.
  • Stainless steel oven cavity with rounded corners.
  • External access door for electrical connections.
  • All connections made on the left side below the oven.
  • Integrated drain outlet.
  • IPx4 water protection.

  • 1 of 60mm pitch side hangers 10x1/1GN electric oven (included with the oven) PNC 922121
Electric
Supply voltage: 260727 (FCE10160) 380-400V/3N ph/60 Hz
Auxiliary: 0.3 kW
Electrical power max.: 17.3 kW
Capacity
Shelf capacity: 10
Key Information:
External dimensions, Width: 890 mm
External dimensions, Height: 970 mm
External dimensions, Depth: 900 mm
Net weight: 121.2 kg
Functional level: Basic
Type of grids: 1/1 Gastronorm
Runners pitch: 60 mm
Cooking cycles - airconvection: 300 °C
Internal dimensions, width: 590 mm
Internal dimensions, depth: 503 mm
Internal dimensions, height: 680 mm
