Horno de Convección a Gas, Capacidad 20 GN 2/1 Cross

260704 (FCG202)

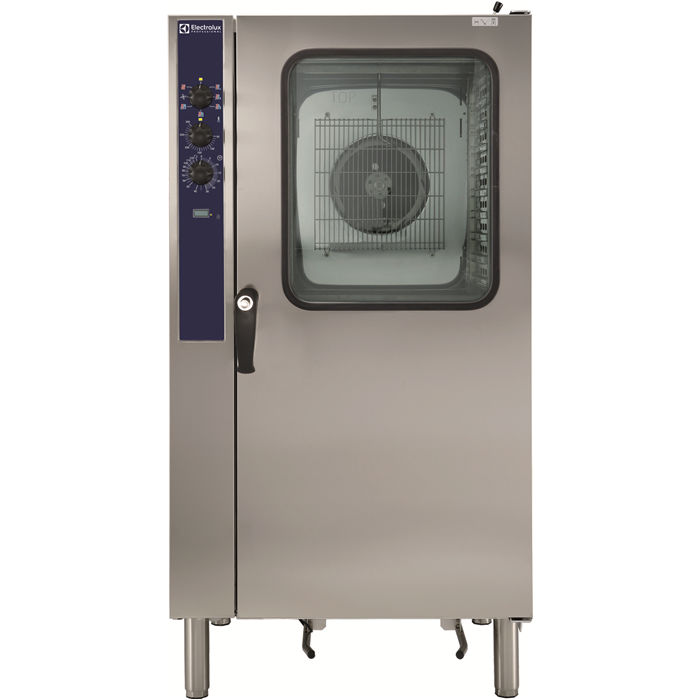

Gas Convection Oven 20x2/1GN, crosswise

Volver a Hornos de convección


  • Main structure in stainless steel, with seamless joints in the oven cavity. Double-glazed door with tempered glass. Cavity lighting. Unique airflow channel system. Atmospheric burner. Cooking cycles: air convection, convection with 5 stage humidification. Max. temperature of 300°C. Functional level: base, manual. "Cross-wise" pan rack suitable for 20x2/1GN or 40x1/1GN. Supplied with n. 1 roll-in rack, 60mm pitch, and n. 2 roll-in rack slides.

  • Racks can be easily removed without the need for special tools.
  • Unique air-flow system guarantees perfect distribution of heat throughout the oven cavity.
  • Maximum temperature of 300°C.
  • Food temperature probe available as accessory.
  • Rapid cooling of oven cavity.
  • Halogen lighting and “crosswise” pan supports allow clear and unobstructed view of the products being cooked.
  • 5 Stage humidification control, to ensure perfect pastries and succulent roasts.
  • Meets the requirements of CE, VDE and DVGW for safety.

  • Access to all components from the front.
  • Stainless steel oven cavity with rounded corners.
  • Double-glazed door with tempered glass.
  • External access door for electrical connections.
  • All connections made on the left side below the oven.
  • Integrated drain outlet.
  • IPx4 water protection.

  • 1 of 60mm pitch roll-in rack for 20x2/1GN PNC 922204
Electric
Supply voltage: 260704 (FCG202) 220-230 V/1 ph/50 Hz
Auxiliary: 1 kW
Electrical power max.: 1 kW
Gas
Gas Power: 50 kW
Capacity
Shelf capacity: 20
Key Information:
External dimensions, Width: 890 mm
External dimensions, Height: 1700 mm
External dimensions, Depth: 1215 mm
Net weight: 311.8 kg
Height adjustment: 80/0 mm
Functional level: Basic
Type of grids: 2/1 Gastronorm
Runners pitch: 60 mm
Cooking cycles - air convection: 300 °C
Internal dimensions, width: 590 mm
Internal dimensions, depth: 760 mm
Internal dimensions, height: 1350 mm
