Plancha Fry Top Eléctrica, Smooth plate lisa

391173 (E9FTEHHS0N)

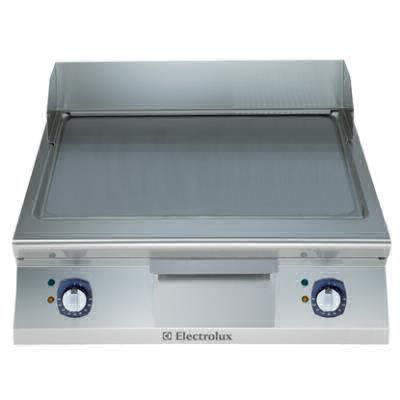

Electric fry top with smooth horizontal mild steel plate, thermostatic control

Volver a gama 900XP


  • Unit to be Electrolux 900XP Full Module Electric Fry Top. Unit to have ____smooth or ____ 2/3 smooth and 1/3 ribbed cooking surface. Electric characteristics to be ____ 400 V or ____ 230 V three phase. Cooking surface to be of mild steel. Unit to be installed on open base installations, bridging supports or cantilever systems. Unit to feature a collector on bottom the cooking surface for the collection of grease and fat. Body and work top of unit entirely in Stainless steel with Scotch Brite finish. Extra strength work top in heavy duty 2 mm Stainless steel. Unit has right-angled side edges to allow flush-fitting junction between units.

  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
  • Cooking surface in 15mm thick mild steel for optimum grilling results.
  • Large drain hole on cooking surface permits the draining of fat into large 1 liter collector placed under the cooking surface.
  • Electric elements in incoloy positioned under the cooking plate.
  • Safety thermostat and thermostatic control.
  • Units have separate controls for each half module of the cooking surface.
  • Stainless steel high splash guards on the rear and sides of cooking surface. Splash guards can be easily removed for cleaning and are dishwasher-safe.
  • Scrapers with smooth or ribbed blades included as standard.
  • The special design of the control knob system guarantees against water infiltration. · IPX5 water protection.

  • Cooking surface to be completely smooth or 2/3 smooth and 1/3 ribbed.
  • Unit is 930 mm deep to give a larger working surface area.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • AISI 304 stainless steel worktop, 2mm thick.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

  • 1 of Stopper for fry top with horizontal plate (only for 391069, 391173) PNC 206296
Electric
Supply voltage: 391173 (E9FTEHHS0N) 230 V/3 ph/50/60 Hz
Total Watts: 15 kW
Key Information
Cooking surface width: 730 mm
Cooking surface depth: 700 mm
Working Temperature MIN: 120 °C
Working Temperature MAX: 280 °C
Net weight: 105 kg
Shipping weight: 391173 (E9FTEHHS0N) 120 kg
Shipping height: 391173 (E9FTEHHS0N) 540 mm
Shipping width: 1020 mm
Shipping depth: 860 mm
Shipping volume: 391173 (E9FTEHHS0N) 0.5 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
