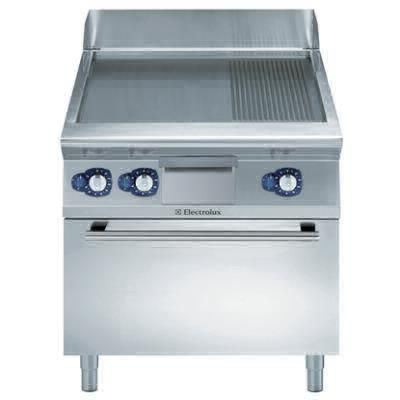

Plancha Fry Top a Gas, Smooth plate y 13 Acanalado con Horno

391052 (E9FTGHSPG0)

Full mode gas fry top with 2/3 smooth and 1/3 ribbed sloped mild steel plate and gas oven (8,5 kW), thermostatic control

Volver a gama 900XP


  • 2/3 smooth and 1/3 ribbed cooking surface in mild steel. 20 kW gas powered burners and heavy duty 8.5 kW standard gas oven with thermostatic valve and self stabilizing flame. To be installed on stainless steel feet with height adjustment up to 50 mm. Removable drawer below the cooking surface for the collection of grease and fat. Ribbed, cast-iron oven base plate. Body and work top of unit entirely in stainless steel with Scotch Brite finish. Extra strength work top in heavy duty 2 mm stainless steel. Right-angled side edges to allow flush-fitting junction between units.

  • Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
  • Cooking surface in 15mm thick mild steel for optimum grilling results.
  • Oven thermostat adjustable from 120 °C to 280 °C.
  • Large drain hole on cooking surface permits the draining of fat into large 1,5 liter collector placed under the cooking surface.
  • Regulators with fixed high and low positions for precise control.
  • Stainless steel high splash guards on the rear and sides of cooking surface. Splash guards can be easily removed for cleaning and are dishwasher-safe.
  • Base compartment consists of a gas heated standard oven with stainless steel burners and self stabilizing flame positioned beneath the base plate.
  • Oven chamber in stainless steel with a ribbed cast-iron base plate.
  • Scrapers with smooth or ribbed blades included as standard.
  • Piezo spark ignition with thermostatic valve for added safety.
  • Units have separate controls for each half module of the cooking surface.
  • The special design of the control knob system guarantees against water infiltration.
  • IPX5 water protection.

  • Cooking surface to be 2/3 smooth and 1/3 ribbed.
  • Unit is 930 mm deep to give a larger working surface area.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • AISI 304 stainless steel worktop, 2mm thick
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

  • 1 of GN2/1 chrome grid for static oven PNC 164250
Gas
Gas Power: 391052 (E9FTGHSPG0) 97156.5 Btu/hr (28.5 kW)
Gas Type Option: LPG;Natural Gas
Gas Inlet: 1/2"
Natural gas - Pressure: 7" w.c. (17.4 mbar)
LPG Gas Pressure: 11" w.c. (27.7 mbar)
Info
Solid top usable surface (width): 730 mm
Solid top usable surface (depth): 700 mm
Oven working Temperature: 120 °C MIN; 280 °C MAX
Oven Cavity Dimensions (width): 575 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 700 mm
Net weight: 171 kg
Shipping weight: 196 kg
Shipping height: 1030 mm
Shipping width: 1020 mm
Shipping depth: 860 mm
Shipping volume: 0.9 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
