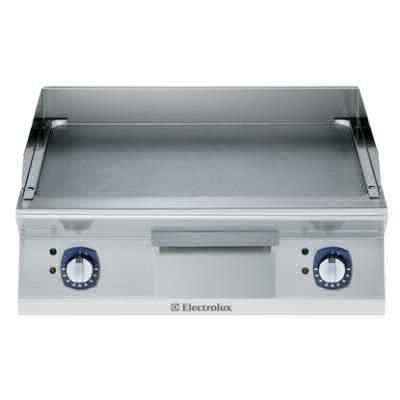

To be installed on open base installations or bridging
supports. Smooth cooking surface in mild steel. Suitable to
be used with Natural or LPG gas. Temperature range from
200°C to 400°C. Removable drawer below the cooking
surface for the collection of grease and fat. Exterior panels
in stainless steel with Scotch Brite finish. One piece pressed
work top in 1.5 mm thick stainless steel. Right-angled side
edges to allow flush-fitting junction between units.
Unit to be mounted on open base cupboards,
bridging supports or cantilever systems.
Large drain hole on cooking surface permits
the draining of fat into large 1,5 liter collector
placed under the cooking surface.
Safety thermostat and thermostatic control.
Stainless steel high splash guard on the rear and
sides of cooking surface. Splash guard can be easily
removed for cleaning.
Scrapers with smooth or ribbed blades included as
standard.
Temperature range of griddle from 110 °C to 300 °C.
IPX 4 water protection.
Infrared heating elements mounted below the
cooking surface.
Cooking surface in mild steel for optimum
grilling results.
Cooking surface to be completely smooth or
2/3 smooth and 1/3 ribbed.
Exterior panel in Stainless Steel with Scotch Brite
finish.
One piece pressed 1.5 mm work top in Stainless
steel.
Model has right-angled side edges to allow
flush fitting joints between units, eliminating
gaps and possible dirt traps.
Shipping volume: 0.38 m³
If appliance is set up or next to or against temperature
sensitive furniture or similar, a safety gap of approximately
150 mm should be maintained or some form of heat
insulation fitted.
