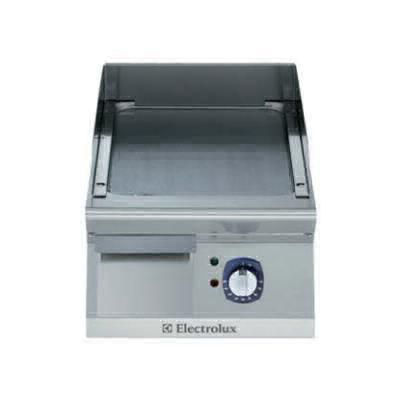

Plancha Fry Top eléctrica, acabado Smooth-plate, 4.5 Kw

371198 (E7FTEDSSIN)

Half module electric fry top with smooth mild steel plate, thermostatic control

Volver a gama 700XP


  • To be installed on open base installations or bridging supports. Smooth cooking surface in mild steel. Suitable to be used with Natural or LPG gas. Temperature range from 200°C to 400°C. Removable drawer below the cooking surface for the collection of grease and fat. Exterior panels in stainless steel with Scotch Brite finish. One piece pressed work top in 1.5 mm thick stainless steel. Right-angled side edges to allow flush-fitting junction between units.

  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
  • Large drain hole on cooking surface permits the draining of fat into large 1,5 liter collector placed under the cooking surface.
  • Large grease collection container available as optional accessory to be installed under top units over open base cupboard.
  • Electric elements in incoloy positioned under the cooking plate.
  • Safety thermostat and thermostatic control. ·
  • Stainless steel high splash guard on the rear and sides of cooking surface. Splash guard can be easily removed for cleaning.
  • Scrapers with smooth or ribbed blades included as standard. ·
  • Temperature range of griddle from 110 °C to 300 °C. ·
  • IPX 4 water protection.

  • Cooking surface in mild steel for optimum grilling results.
  • Cooking surface to be completely smooth or 2/3 smooth and 1/3 ribbed.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • One piece pressed 1.5 mm work top in Stainless steel.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Electric
Supply voltage: 371198 (E7FTEDSSIN) 230 V/3 ph/50/60 Hz
Connected load: 371198 (E7FTEDSSIN) 3.9 kW
Total Watts: 371198 (E7FTEDSSIN) 3.9 kW
Info
Cooking surface width: 330 mm
Cooking surface depth: 540 mm
Working Temperature MIN: 110 °C
Working Temperature MAX: 300 °C
Net weight: 40 kg
Shipping weight: 47 kg
Shipping height: 540 mm
Shipping width: 460 mm
Shipping depth: 820 mm
Shipping volume: 0.2 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
