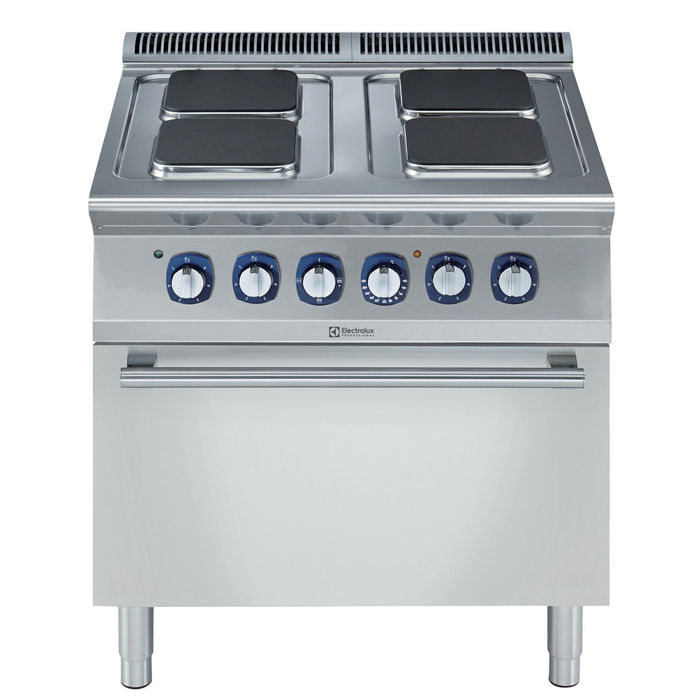

Estufa de 4 hornillas cuadradas con Horno eléctrico

371129 (E7ECEH4QEN)

4-hot square plate (2,6 kW each) electric range on electric oven (6 kW)

Volver a gama 700XP


  • To be installed on stainless steel feet with height adjustment up to 50 mm. Four 2.6 kW cast-iron hot plates hermetically sealed to the one-piece top. Stainless steel oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans). Ribbed oven base plate. Exterior panels in stainless steel with Scotch Brite finish. One piece pressed work top in 1.5 mm thick stainless steel. Right-angled side edges to allow flush-fitting junction between units.

  • The four round 2.6kW cast-iron plates are hermtically sealed to the one-piece top.
  • Base compartment consists of an electric standard oven with thick oven door for heat insulation, positioned beneath the base plate.
  • Electric oven to have separate thermostats for top and bottom heating elements.
  • Stainless steel oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans).
  • Ribbed enamelled steel oven base plate.
  • Oven thermostat adjustable from 140 °C to 300 °C.
  • The special design of the control knob system guarantees against water infiltration.
  • IPx4 water protection.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • One piece pressed 1.5 mm work top in Stainless steel.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

  • 1 of GN 2/1 chrome grid for static oven PNC 164250
Electric
Supply voltage: 371129 (E7ECEH4QEN) 230 V/3 ph/50/60 Hz
Total Watts: 16.4 kW
Key Information:
Front Plates Power: 2.6 - 2.6 kW
Back Plates Power: 2.6 - 2.6 kW
Front Plates dimensions: 230x230 230x230
Back Plates dimensions: 230x230 230x230
Oven working Temperature: 140 °C MIN; 300 °C MAX
Oven Cavity Dimensions (width): 540 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 650 mm
Net weight: 80 kg
Shipping weight: 371129 (E7ECEH4QEN) 95 kg
Shipping height: 371129 (E7ECEH4QEN) 1140 mm
Shipping width: 820 mm
Shipping depth: 860 mm
Shipping volume: 371128 (E7ECEH4REN) 0.8 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
