371125
Estufa 4 quemadores a gas, horno eléctrico

371125 (E7GCGH4CEN)

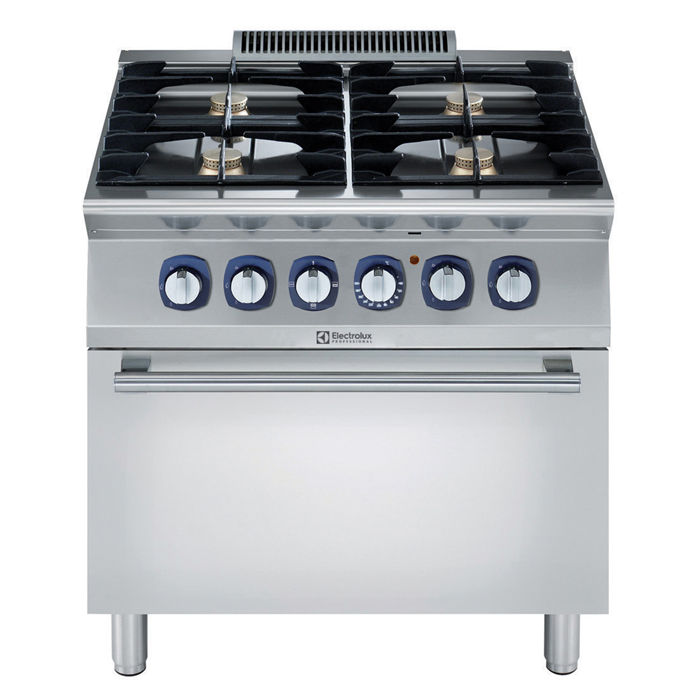

4-burner (5,5 kW each) gas range on electric oven (6 kW)

Volver a gama 700XP


  • To be installed on stainless steel feet with height adjustment up to 50 mm. High efficiency flower flame burners with flame regulator and protected pilot light. Flame failure device as standard on burners to protect against accidental extinguishing. Stainless steel oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans). Ribbed oven base plate. Exterior panels in stainless steel with Scotch Brite finish. Pan supports in heavy duty cast iron. One piece pressed work top in 1.5 mm thick stainless steel. Right-angled side edges to allow flush-fitting junction between units.

  • Unit to have stainless steel feet with height adjustment up to 50 mm.
  • The four 5.5 kW high efficiency flower flame burners allow the flame to adapt to different size pans.
  • Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
  • Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
  • Pan supports in cast iron are washable in a dish washer.
  • Burners to feature flame regulator.
  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
  • Protected pilot light.
  • Base compartment consists of an electric standard oven positioned beneath the base plate. Stainless steel oven chamber to have 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed enamelled steel base plate.
  • Oven thermostat adjustable from 140 °C to 300 °C.
  • Double skinned door with pressed internal panel for heat insulation.
  • IPX 4 water protection.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • One piece pressed 1.5 mm work top in Stainles s steel.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

  • 1 of GN2/1 chrome grid for static oven PNC 164250
Electric
Supply voltage: 371125 (E7GCGH4CEN) 230 V/3 ph/50/60 Hz
Electrical power, max: 6 kW
Total Watts: 6 kW
Oven Heat Input: 6 kW
Gas
Gas Power: 74998 Btu/hr (22 kW)
Standard gas delivery: Natural Gas G20 (20mbar)
Gas Type Option: LPG;Town
Gas Inlet: 1/2"
Natural gas - Pressure: 371003 (E7GCGH4CE0) 7" w.c. (17.4 mbar)
Key Information
Front Burners Power: 5.5 - 5.5 kW
Back Burners Power: 5.5 - 5.5 kW
Back Burners Dimension - mm Ø 60 Ø 60
Front Burners Dimension - mm Ø 60 Ø 60
Oven working Temperature: 140 °C MIN; 300 °C MAX
Oven Cavity Dimensions (width): 540 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 650 mm
Net weight: 371125 (E7GCGH4CEN) 80 kg
Shipping weight: 371125 (E7GCGH4CEN) 95 kg
Shipping height: 1140 mm
Shipping width: 820 mm
Shipping depth: 860 mm
Shipping volume: 0.8 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
